Rack PDUs, built to your outlet standard
Every Grantec PDU is built to order. The housing is extruded aluminium alloy with a PC front panel, in 1U and 1.5U rack formats from 483 mm to 905 mm long, rated for a 0–45 °C operating environment. You specify the outlet standard, the input current and the protection you need; we build the strip to match.
- Aluminium-alloy housing, PC panel
- 1U & 1.5U · 483–905 mm long
- 0–45 °C operating range
- 19-inch ears or toolless mount
Outlet standards
An outlet standard for every region
Build to any of these, or mix standards on one strip for multi-region projects.
Configure it
An options matrix, not a fixed SKU list
Outlet standard

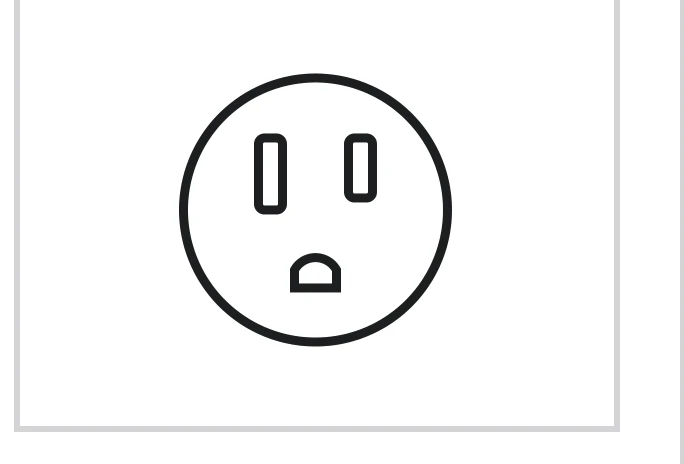

- US NEMA

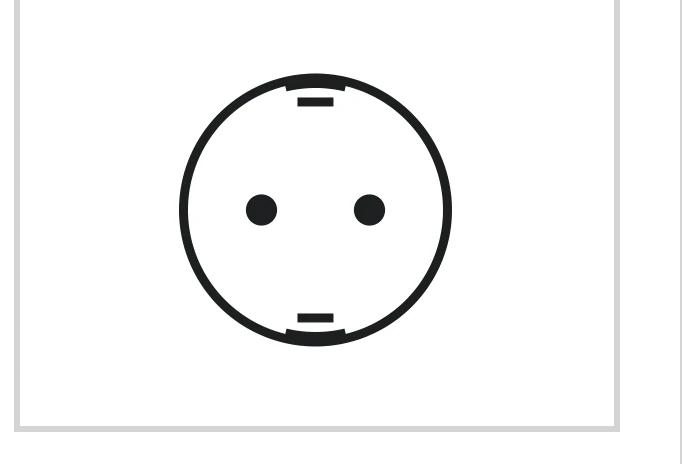

- German Schuko

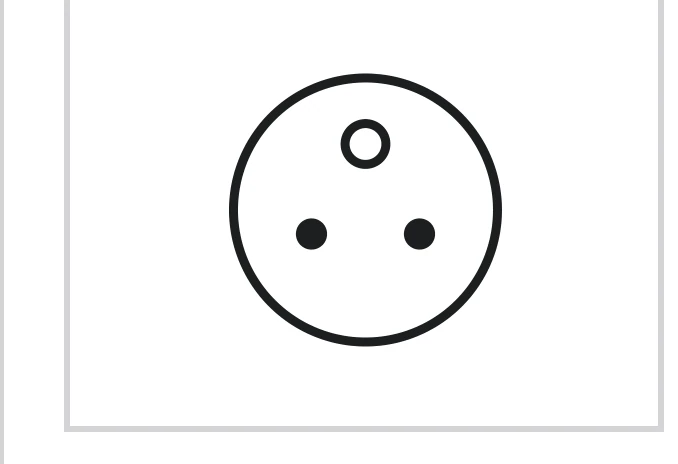

- French
- Italian

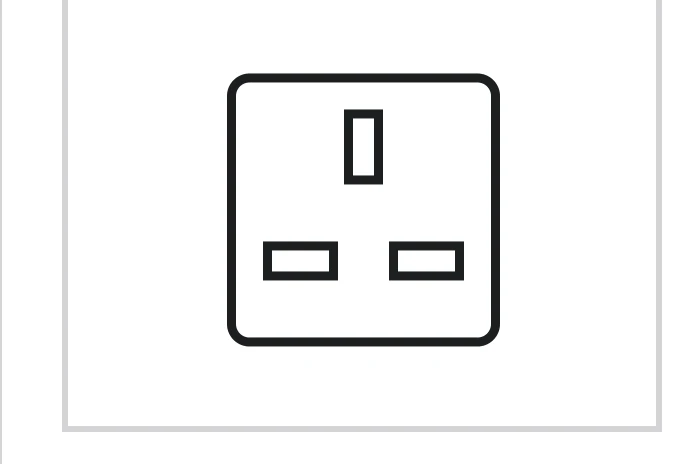

- UK (British)

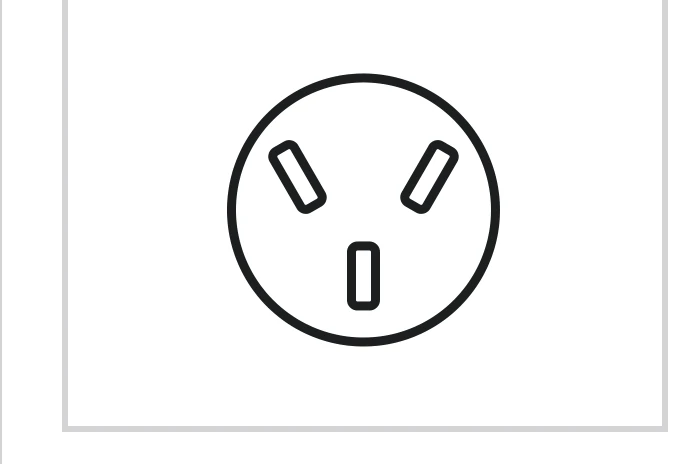

- Australian
- Universal 10 A

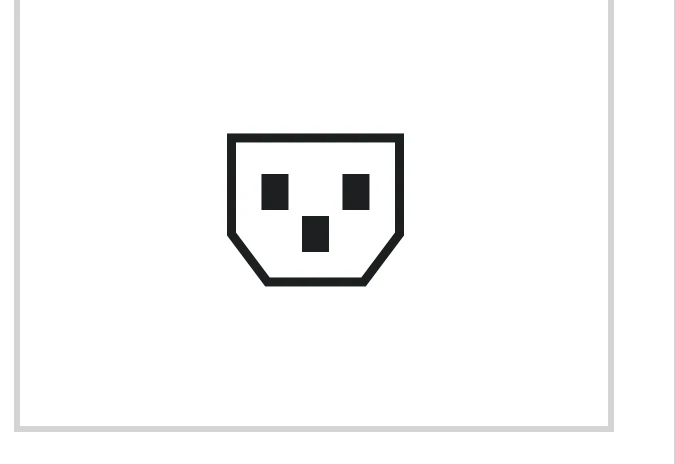

- IEC C13
- IEC C19
- Industrial (IEC 60309)
Mix standards on one strip for multi-region projects.
Input current
- 10 A
- 16 A
- 32 A (industrial)
Protection & control modules
- On/off switch
- Double-break switch
- Overload protector
- Surge protector with indicator(s)
- Circuit breaker
- Power indicator
Format & mounting
- 1U · 1.5U · 2U · 3U
- 0U vertical
- 19-inch rack ears
- Toolless mount
- Aluminium / sheet-metal / PVC
- Lengths 483–905 mm
Feature options
Protection, metering and control — all on request
Aluminium alloy shell
Anodised profile; PVC shell available on selected models.
PC panel
Flame-retardant polycarbonate outlet panel.
Overload protector
Resettable thermal protector cuts power on overload.
Double-break switch
L + N double-pole switch with indicator window.
Circuit breaker
Single or double circuit breaker per strip.
Surge protector
Surge module with status indicator light.
Digital meter
Ammeter / voltmeter display for on-site load monitoring.
Energy metering
kWh metering to track consumption per strip.
Switch cover
Protective cover prevents accidental shutdown.
USB charging
USB-A / USB-C charging ports alongside outlets.
Locking outlets
Lockable IEC outlets and cord retention grips.
Custom build
Outlet mix, cord length, inlet plug and 0U / 1U / 1.5U format to order.
From basic to smart
Pick your level of intelligence
Basic
Outlets plus a switch and overload protection — the reliable default.
Surge / protected
Adds surge protection with indicators and circuit breakers for sensitive loads.
Metered
Reads current, voltage, power and energy locally on a display.
Smart / monitored
Networked metering with per-outlet switching and alarms — the SPDU in our smart cabinets.
The monitored SPDU is the power core of our smart cabinets — metered and switched per outlet, over the network.
Sample configurations
A selection of real build codes. Yours is built to spec — these show the range.
| Code | Outlets | Protection & control | Format & size |
|---|---|---|---|
| HP-1.5UA-U01(6)-KG | 6 × US NEMA | 1 switch + 1 overload protector | 1.5U · 483 × 66 × 44 mm |
| HP-1.5UA-G01(6)-2Y | 6 × German Schuko | 1 double circuit breaker | 1.5U · 504 × 66 × 44 mm |
| HP-1U-F02(8)-K | 8 × French | 1 double-break switch | 1U · 487 × 44 × 44 mm |
| HP-1.5UA-I02(6)-3F | 6 × Italian | 1 surge protector with 3 indicators | 1.5U · 483 × 66 × 44 mm |
| HP-1.5UA-E02(6)-KG | 6 × UK (British) | 1 double-break switch + 1 overload protector | 1.5U · 483 × 66 × 44 mm |
| HP-1.5UA-A01(6)-G | 6 × Australian | 1 overload protector | 1.5U · 483 × 66 × 44 mm |
| HP-1.5UA-C13-1(10)-SK | 10 × IEC C13 | 1 switch + 1 indicator | 1.5U · 583.5 × 66 × 44 mm |
| HP-1U-C19(8)-GS | 8 × IEC C19 | 1 overload protector + 1 indicator | 1U · 533 × 44 × 44 mm |
| HP-1.5UA-M01(16)-FKG | 16 × universal 10 A | 1 double-break switch + 1 overload + 1 surge with indicator | 1.5U · 905 × 66 × 44 mm |
| HP-1U-C19(3)-C13(3)-M01(3) | 3 × C19 + 3 × C13 + 3 × universal | 9 overload protectors + 9 indicators | 1.5U · 893 × 44 × 66 mm |
Every PDU is built to order — send us your outlet standard and circuit spec, and we quote the exact strip.
FAQ
PDU questions
Can you build a PDU to my country’s outlet standard?
Yes. We build to US NEMA, Schuko, French, Italian, UK, Australian, universal 10 A, and IEC C13/C19 — and mix standards on one strip for multi-region projects.
Do you offer 10 A and 16 A input?
Both. Specify the input current with your outlet layout and protection (switch, overload, surge, breaker) and we build to spec.
Send us your outlet standard and circuit spec
We quote the exact strip — mixed standards on one PDU welcome.
