GN network cabinet — 18U–47U 19-inch floor-standing rack
The GN is our 19 inch floor-standing network cabinet for high-density switching and light server loads. Seven heights from 18U to 47U, in 600 or 800 mm width and 600, 800 or 1000 mm depth, with brackets, cable managers, PDU fixing slots and quality locks — the one family distributors stock to cover almost any network job.
- Rack units18–47U (7 heights)
- Width × Depth600·800 × 600·800·1000 mm
- Static load800 kg
Built for the job
- Seven heights (18U, 22U, 27U, 32U, 37U, 42U, 47U) in 600 or 800 mm width and 600, 800 or 1000 mm depth.
- Tempered-glass front door with swing-handle lock and a metal rear door with cam lock; twelve door styles to choose from.
- Top cover and bottom plate with closable cable entry; two fans included (four on 42U and above); grounding bolts fitted.
- 800 mm-wide cabinets add two vertical metal cable managers for high port-count builds.

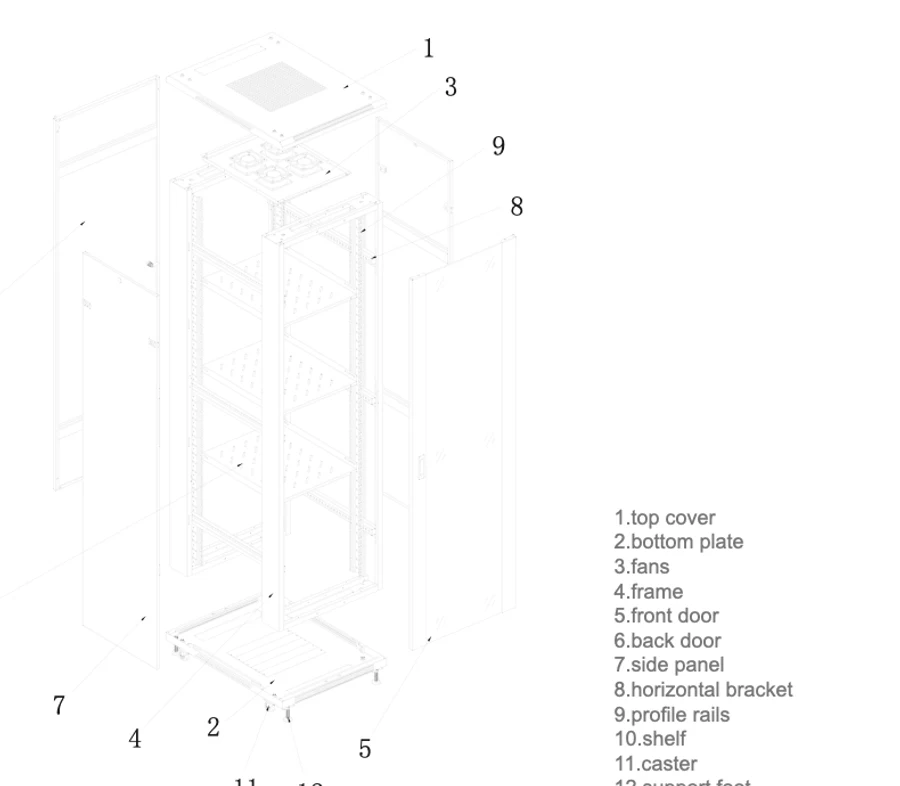

- Removable side panels with cam and snap locks; four vertical rails, four levelling feet, four castors, one shelf and cage-nut kits included.
- 800 kg static load; flat-packs to cut shipping space by about two-thirds, or ships assembled.
Models & dimensions
The current GN model matrix from the Grantec spec sheet — every width, depth and height we ship.
| Model | U | W × D (mm) |
|---|---|---|
| GN6618 | 18U | 600 × 600 |
| GN6622 | 22U | 600 × 600 |
| GN6822 | 22U | 600 × 800 |
| GN6627 | 27U | 600 × 600 |
| GN6827 | 27U | 600 × 800 |
| GN6632 | 32U | 600 × 600 |
| GN6832 | 32U | 600 × 800 |
| GN6637 | 37U | 600 × 600 |
| GN6837 | 37U | 600 × 800 |
| GN6137 | 37U | 600 × 1000 |
| GN8837 | 37U | 800 × 800 |
| GN6642 | 42U | 600 × 600 |
| GN6842 | 42U | 600 × 800 |
| GN6142 | 42U | 600 × 1000 |
| GN8842 | 42U | 800 × 800 |
| GN8142 | 42U | 800 × 1000 |
| GN6647 | 47U | 600 × 600 |
| GN6847 | 47U | 600 × 800 |
| GN6147 | 47U | 600 × 1000 |
| GN8847 | 47U | 800 × 800 |
| GN8147 | 47U | 800 × 1000 |
Flat-packs to cut shipping space by about two-thirds, or ships assembled. Black RAL 9005 or grey RAL 7035 as standard; other RAL on request.
FAQ
GN — common questions
What heights and widths does the GN come in?
Seven heights — 18U, 22U, 27U, 32U, 37U, 42U and 47U — in 600 or 800 mm width and 600, 800 or 1000 mm depth.
How many door styles does the GN offer?
Twelve door styles (A–L), from tempered glass to solid iron and several vented patterns, selectable front and rear.
What is different about the 800 mm-wide GN?
The 800 mm-wide cabinets add two vertical metal cable managers beside the mounting rails — the right choice for high port-count switching.
