GS server rack — 24U / 37U / 42U / 48U 19-inch data-centre cabinet
The GS is our 19 inch floor-standing server rack for data centres, server rooms and dense integration projects. A heavy SPCC cold-rolled steel frame carries a 1500 kg static load, perforated front and split rear doors give up to 78% free area for front-to-rear cooling, and it ships in 24U, 37U, 42U and 48U at 600 or 800 mm width and 600–1070 mm depth.
- Rack units24 / 37 / 42 / 48U
- Width × Depth600·800 × 600–1070 mm
- Static load1500 kg
Built for the job
- 1500 kg static load on a heavy SPCC cold-rolled steel frame; heavy-duty castors rated to 1050 kg rolling.

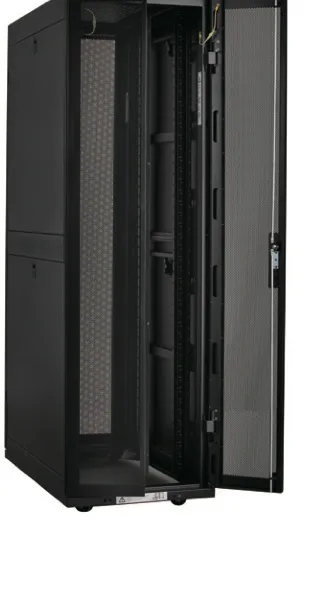

- Perforated front door and split perforated rear doors — up to 78% free area for high-airflow, front-to-rear cooling.

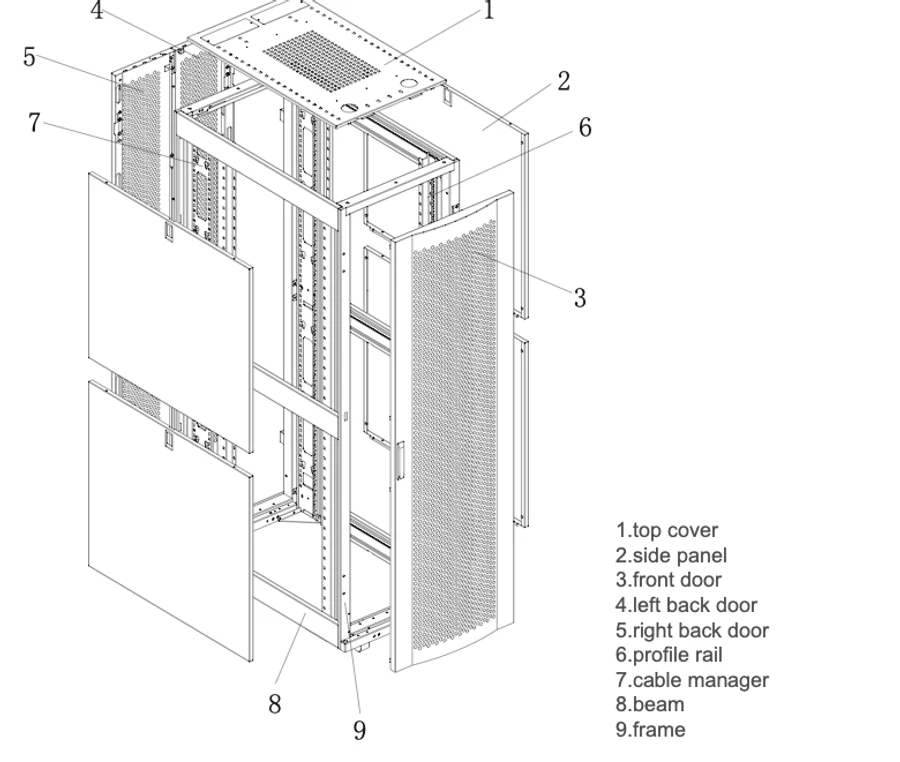

- Horizontally divided side panels lift off individually for easy post-installation access down each flank.
- Numbered vertical mounting rails, adjustable in 1/4-inch (6.4 mm) increments, with full cable management.
- Ships knock-down to cut freight by up to 60%, or built-up on castors ready to roll into place.
- Levelling feet and 2-inch heavy-duty castors included; 3-inch castors and a bottom plate optional.
Models & dimensions
The current GS model matrix from the Grantec spec sheet — every width, depth and height we ship.
| Model | U | W × D (mm) |
|---|---|---|
| GS6624 | 24U | 600 × 600 |
| GS6824 | 24U | 600 × 800 |
| GS6124 | 24U | 600 × 1070 |
| GS8824 | 24U | 800 × 800 |
| GS6637 | 37U | 600 × 600 |
| GS6837 | 37U | 600 × 800 |
| GS6137 | 37U | 600 × 1070 |
| GS6642 | 42U | 600 × 600 |
| GS6842 | 42U | 600 × 800 |
| GS6142 | 42U | 600 × 1070 |
| GS8842 | 42U | 800 × 800 |
| GS8142 | 42U | 800 × 1070 |
| GS6648 | 48U | 600 × 600 |
| GS6848 | 48U | 600 × 800 |
| GS6148 | 48U | 600 × 1070 |
| GS8848 | 48U | 800 × 800 |
| GS8148 | 48U | 800 × 1070 |
Ships knock-down in three cartons to cut container freight by up to 60%, or built-up on castors. Standard colours black RAL 9005 and grey RAL 7035; other RAL on request.
FAQ
GS — common questions
How much load does the GS server rack hold?
The GS is rated for a 1500 kg static load on a heavy SPCC cold-rolled steel frame, with heavy-duty castors rated to 1050 kg rolling.
How much airflow do the doors give?
The perforated front door and split perforated rear doors offer up to 78% free area for front-to-rear cooling of dense server loads.
Can the GS ship flat-packed to save container space?
Yes. The GS ships knock-down in three cartons, cutting freight by up to 60% versus assembled, or built-up on castors when you prefer.
