JB600 standing network rack — 18U–47U 600 mm 19-inch cabinet

The JB600 is a 600 mm-wide 19-inch network cabinet built for range: seven heights from 18U to 47U and depths of 600, 800 or 1000 mm. With twelve door styles to choose from, it is the cabinet distributors stock to cover almost any network or light-server job from one SKU family.

Rack units18–47U (7 heights)
Width × Depth600 × 600·800·1000 mm
Static load800 kg
Flat-pack from0.233 m³

Request a quote Full spec table

JB600 network rack, grey, tempered-glass front door, front view

Container economics

up to 58%less freight, flat-packed

0.384–1.448m³Assembled carton volume

0.233–0.609m³Flat-packed carton volume

More racks per container. Per-model assembled and flat-pack volumes in the table below.

Built for the job

Seven heights (18U, 22U, 27U, 32U, 37U, 42U, 47U) and three depths — the broadest matrix in our floor-standing line.
Twelve door styles (A–L): tempered glass, solid iron, hexagonal-vented "great wall", and round-hole screen doors, mixed front-to-rear as the application needs.
Adjustable front and rear profile rails carry U-position markings for fast, repeatable mounting.
800 kg static load; removable side panels and front/rear doors for open-frame-style access during build-out.
Top and bottom cable entry, the bottom entry adjustable; grounding screw fitted inside.
Casters and M12 levelling feet included; top-mount fan plate takes 2 or 4 fans by depth.

Construction

Profile rails	2.0 mm
Frames, doors, brackets, shelves	1.2 mm
Side panels	1.0 mm

Doors & finish

A / B / C / L — tempered glass · D — solid iron · E / F — hexagonal-vented "great wall" · G — round-hole screen · H / I — round screen · J — hexagonal-vented fillet · K — round-hole double screen.

Standard colours black RAL 9005 and grey RAL 7035; other RAL on request.

Models & dimensions

Transcribed from the factory spec sheet. Assembled and flat-pack carton volumes let you compare container loading directly.

Model	U	W × D (mm)	Height (mm)	Assembled (m³)	Flat-pack (m³)
JB6618	18U	600 × 600	988	0.384	0.233
JB6622	22U	600 × 600	1166	0.597	0.268
JB6822	22U	600 × 800	1166	0.597	0.284
JB6627	27U	600 × 600	1388	0.452	0.312
JB6827	27U	600 × 800	1388	0.597	0.328
JB6632	32U	600 × 600	1610	0.623	0.356
JB6832	32U	600 × 800	1610	0.824	0.372
JB6637	37U	600 × 600	1833	0.707	0.399
JB6837	37U	600 × 800	1833	0.935	0.415
JB6137	37U	600 × 1000	1833	1.164	0.505
JB6642	42U	600 × 600	2055	0.794	0.443
JB6842	42U	600 × 800	2055	1.05	0.459
JB6142	42U	600 × 1000	2055	1.306	0.559
JB6647	47U	600 × 600	2277	0.88	0.487
JB6847	47U	600 × 800	2277	1.164	0.504
JB6147	47U	600 × 1000	2277	1.448	0.609

Two-package flat-pack (top/bottom/shelves in one, doors/panels/frames/rails/fans in the other). Black RAL 9005 or grey RAL 7035 as standard.

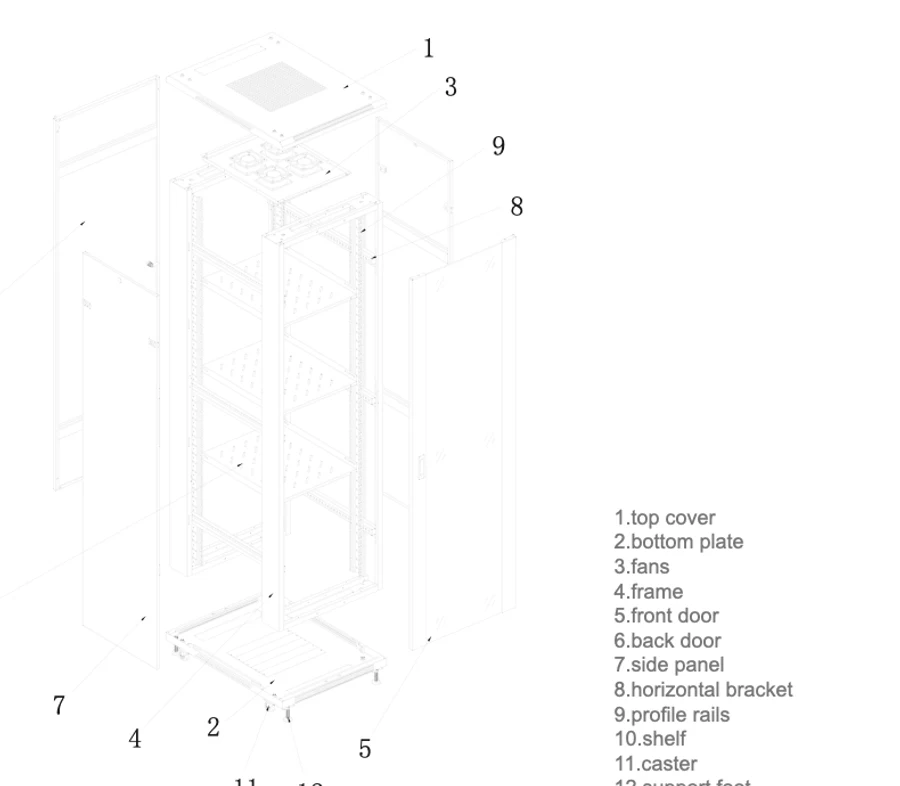

JB600 exploded construction and dimension drawing — parts and W/D/H — Exploded construction and dimensions for the JB600. Numbered parts correspond to the construction table.

FAQ

JB600 — common questions

How many door styles does the JB600 offer?

Twelve door styles (A–L), from tempered glass to solid iron and several vented and screen patterns, selectable front and rear.

What is the tallest JB600?

The JB600 goes up to 47U (2277 mm cabinet height), with 42U, 37U, 32U, 27U, 22U and 18U also standard.

Can I order mixed heights and depths in one container?

Yes — the JB600 flat-packs, so distributors routinely mix heights and depths in a single mixed-container order.

Quote the JB600 for your market

Send models, quantities, colour or label, and destination port.
