JE heavy-duty server rack — 42U / 47U 1200 kg 9-fold frame
The JE is our flagship server cabinet, built for the heaviest, deepest server loads. A 9-fold profile frame lifts the static rating to 1200 kg — half a tonne more than a standard rack — in 42U and 47U, at 600 or 800 mm width and 800 or 1000 mm depth.
- Rack units42 / 47U
- Width × Depth600·800 × 800·1000 mm
- Static load1200 kg
More racks per container. Per-model assembled and flat-pack volumes in the table below.
Built for the job

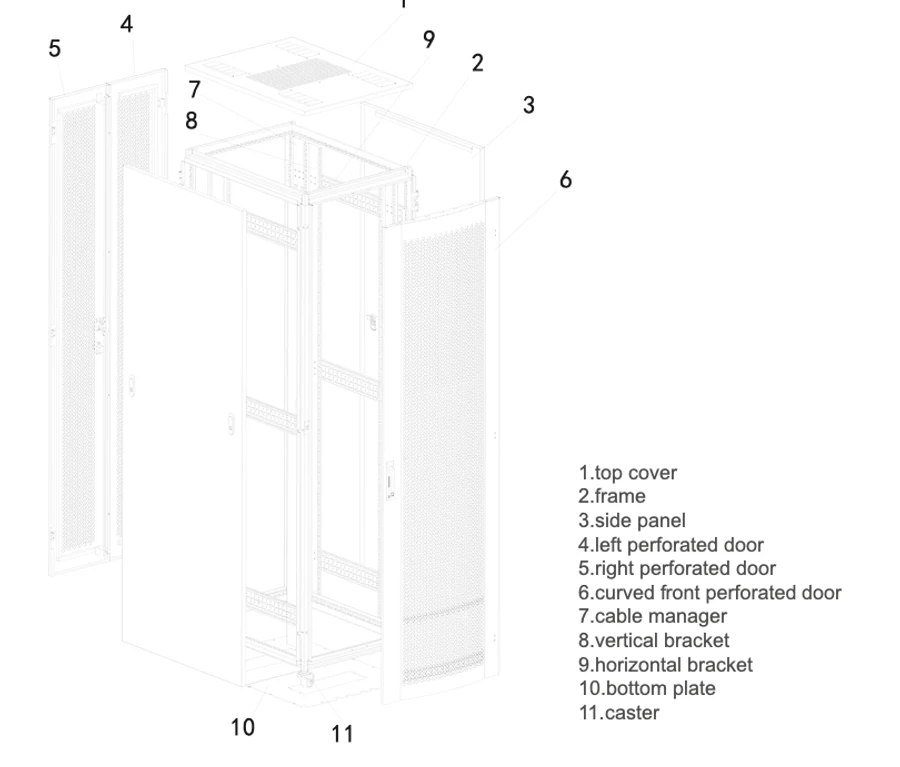

- 1200 kg static load — a 9-fold formed profile frame carries fully populated, deep server chassis.
- Curved perforated front screen door and double perforated rear doors for high-airflow cooling.
- 2.0 mm vertical and horizontal shelving members; eco-friendly plastic cable managers inside.
- Side panels split one- or two-per-side, each removable, for service access on both flanks.
- Profile rails carry U-position markings; optional pedestals for fixing and cable entry.
- Offered in 42U and 47U, 600 or 800 mm wide, 800 or 1000 mm deep.
Models & dimensions
Transcribed from the factory spec sheet. Assembled and flat-pack carton volumes let you compare container loading directly.
| Model | U | W × D (mm) | Height (mm) | Assembled (m³) |
|---|---|---|---|---|
| JE6842 | 42U | 600 × 800 | 2130 | 1.088 |
| JE6142 | 42U | 600 × 1000 | 2130 | 1.353 |
| JE6847 | 47U | 600 × 800 | 2350 | 1.2 |
| JE6147 | 47U | 600 × 1000 | 2350 | 1.473 |
| JE8842 | 42U | 800 × 800 | 2130 | 1.421 |
| JE8142 | 42U | 800 × 1000 | 2130 | 1.77 |
| JE8847 | 47U | 800 × 800 | 2350 | 1.568 |
| JE8147 | 47U | 800 × 1000 | 2350 | 1.952 |
The heavy-duty JE is supplied assembled; the catalogue publishes assembled carton volumes only. Black RAL 9005 or grey RAL 7035.
FAQ
JE — common questions
How much load does the JE hold?
The JE is rated for a 1200 kg static load — around 50% more than a standard 800 kg cabinet — thanks to its 9-fold profile frame.
When should I specify the JE over the JA or JB?
Choose the JE for the heaviest, deepest server and storage loads, or where you want maximum frame rigidity at 42U–47U.
Quote the JE for your market
Send models, quantities, colour or label, and destination port.
