GWA wall-mount cabinet — 6U–22U 19-inch network enclosure

The GWA is a 19 inch wall-mount cabinet for switches, patch panels and edge gear where floor space is scarce. A bolted single-section body flat-packs to save freight or ships assembled, with a lockable tempered-glass door, in six heights from 6U to 22U at 450, 500 or 600 mm depth.

Rack units6 / 9 / 12 / 15 / 18 / 22U
Width × Depth600 × 450·500·600 mm
Static load60 kg

Request a quote Full spec table

GWA wall-mount network cabinet, grey, tempered-glass front door, front view

Built for the job

Bolted single-section frame — flat-packs to cut freight, or ships fully assembled.
Tempered-glass front door with lock; doors and removable side panels lift off, opening left or right.
Rear panel carries the wall-mounting bracket; top cover has two fan openings and one fan; bottom panel has a cable-entry cover and grounding bolt.
Four vertical mounting rails and one shelf included; M6 cage-nut kit (12 sets).
Closable top and bottom cable entry with an earthing screw inside.
60 kg static load; six heights (6U–22U) at 450, 500 or 600 mm depth.

Construction

Front door	5 mm tempered glass
Profile rails	1.5 mm
Side panels, brackets, L-bars	1.2 mm
Top cover, bottom plate, frame, back panel	1.0 mm

Doors & finish

Standard colours black RAL 9005 and grey RAL 7035; other RAL on request.

Models & dimensions

The current GWA model matrix from the Grantec spec sheet — every width, depth and height we ship.

Model	U	W × D (mm)
GWA6406	6U	600 × 450
GWA6506	6U	600 × 500
GWA6606	6U	600 × 600
GWA6409	9U	600 × 450
GWA6509	9U	600 × 500
GWA6609	9U	600 × 600
GWA6412	12U	600 × 450
GWA6512	12U	600 × 500
GWA6612	12U	600 × 600
GWA6515	15U	600 × 500
GWA6615	15U	600 × 600
GWA6518	18U	600 × 500
GWA6618	18U	600 × 600
GWA6622	22U	600 × 600

Ships flat-packed to save freight or fully assembled. Black RAL 9005 or grey RAL 7035 as standard; other RAL on request.

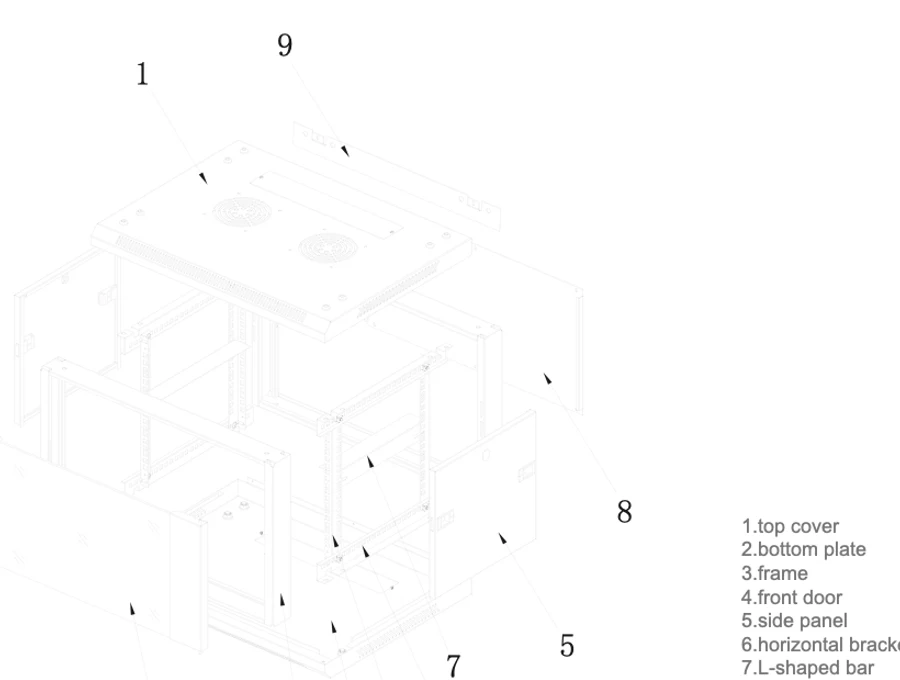

GWA exploded construction and dimension drawing — parts and W/D/H — Exploded construction and dimensions for the GWA. Numbered parts correspond to the construction table.

FAQ

GWA — common questions

What sizes does the GWA wall cabinet come in?

Six heights — 6U, 9U, 12U, 15U, 18U and 22U — all 600 mm wide, at 450, 500 or 600 mm depth.

Can the GWA ship flat-packed?

Yes. The GWA has a bolted single-section frame, so it flat-packs to save container space, or ships fully assembled when you prefer.
