QA-H wall-mount rack — economy 6U–15U 19-inch cabinet
The QA-H is the economy version of the QA: the same 600×450 mm footprint, the same 6U–15U heights and the same lockable tempered-glass door, on a simplified frame-based body. It is the value pick for high-volume wall installs where cost per unit leads.
- Rack units6 / 9 / 12 / 15U
- Width × Depth600 × 450 mm
- Static load60 kg
More racks per container. Per-model assembled and flat-pack volumes in the table below.
Built for the job

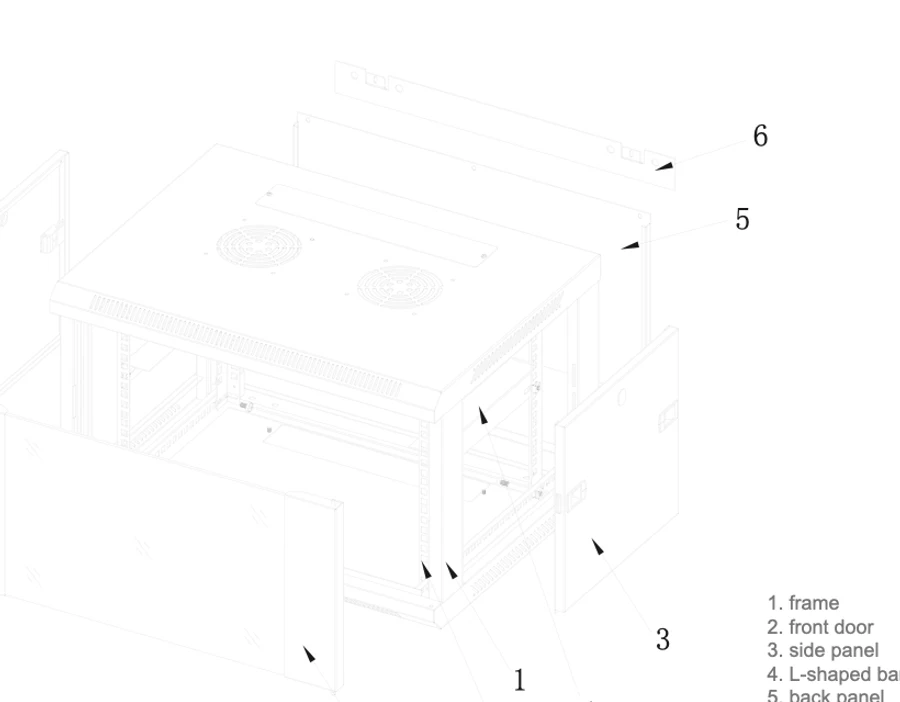

- Frame-based construction — the QA’s separate top cover, bottom plate and horizontal brackets are integrated to reduce parts and cost.
- Same 5 mm tempered-glass, reversible, lockable front door as the QA.
- 1.0 mm side panels keep weight and price down while holding the 60 kg static rating.
- Identical 600×450 mm footprint and 6U / 9U / 12U / 15U heights to the QA.
- Adjustable front and rear profile rails; internal grounding screw and removable back panel.
- Door options: tempered glass (B / C / L) or solid iron (D).
Models & dimensions
Transcribed from the factory spec sheet. Assembled and flat-pack carton volumes let you compare container loading directly.
| Model | U | W × D (mm) | Height (mm) | Assembled (m³) |
|---|---|---|---|---|
| QA-H6406 | 6U | 600 × 450 | 370 | 0.114 |
| QA-H6409 | 9U | 600 × 450 | 500 | 0.154 |
| QA-H6412 | 12U | 600 × 450 | 636 | 0.192 |
| QA-H6415 | 15U | 600 × 450 | 770 | 0.23 |
Supplied on the QA footprint; the catalogue lists carton volumes per model. Black RAL 9005 or grey RAL 7035.
FAQ
QA-H — common questions
How does the QA-H differ from the QA?
The QA-H is a leaner, lower-cost build: a simplified frame body without the QA’s separate top cover, bottom plate and horizontal brackets, with 1.0 mm side panels — same footprint, heights and glass door.
Does the QA-H take the same door as the QA?
Yes — the same reversible, lockable 5 mm tempered-glass door, with a solid-iron option.
