QB wall-mount rack — hinged-body 6U–15U 19-inch cabinet

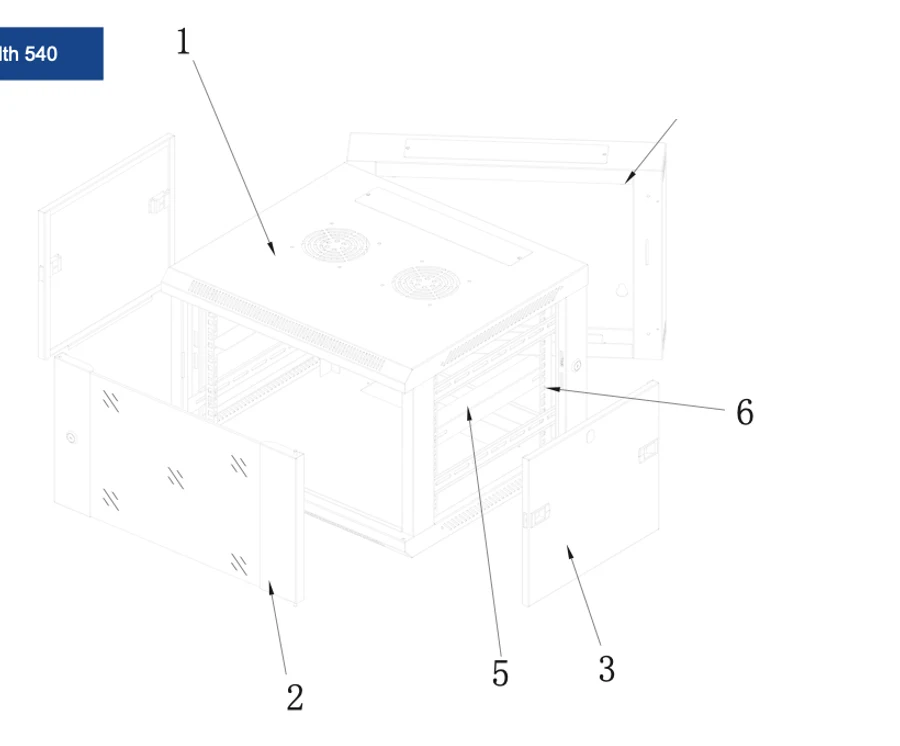

The QB is a wall cabinet built for serviceability. Its two-section body is hinged, so the trunk swings open away from the wall to give full access to the back of mounted equipment — no unracking to reach a cable. Offered 540 or 600 mm wide at 550 mm deep.
- Rack units6 / 9 / 12 / 15U
- Width × Depth540·600 × 550 mm
- Static load60 kg
More racks per container. Per-model assembled and flat-pack volumes in the table below.
Built for the job
- Hinged two-section body — swing the cabinet open for full rear access to cabling and connectors.
- Choice of 540 mm or 600 mm width at a 550 mm depth for slightly deeper gear than the QA.
- 5 mm tempered-glass, lockable, reversible front door.
- 60 kg static load; 1.5 mm back frame and vertical brackets for a rigid swinging body.
- Closable top/bottom cable entry and an internal grounding screw.
- Door options: tempered glass (B / C / L) or solid iron (D).
Models & dimensions
Transcribed from the factory spec sheet. Assembled and flat-pack carton volumes let you compare container loading directly.
| Model | U | W × D (mm) | Height (mm) | Assembled (m³) |
|---|---|---|---|---|
| QB5506 | 6U | 540 × 550 | 370 | 0.124 |
| QB5509 | 9U | 540 × 550 | 503 | 0.166 |
| QB5512 | 12U | 540 × 550 | 636 | 0.21 |
| QB5515 | 15U | 540 × 550 | 770 | 0.252 |
| QB6506 | 6U | 600 × 550 | 370 | 0.138 |
| QB6509 | 9U | 600 × 550 | 503 | 0.184 |
| QB6512 | 12U | 600 × 550 | 636 | 0.233 |
| QB6515 | 15U | 600 × 550 | 770 | 0.279 |
Compact wall cabinet supplied on a per-model carton volume. Black RAL 9005 or grey RAL 7035.
FAQ
QB — common questions
What makes the QB different from the QA?
The QB’s body is hinged in two sections and swings off the wall for full rear access — useful where the wall behind the cabinet is hard to reach.
What widths and depth does the QB offer?
540 mm or 600 mm wide, both at 550 mm deep, in 6U/9U/12U/15U.
Quote the QB for your market
Send models, quantities, colour or label, and destination port.
